RGS SERIES
Grid Simulator & Load 12kVA to 1.29MVA+
The Regenerative Grid Simulator “RGS” Series is a high-power-density Grid Simulator. RGS offers Optional 4-Quadrant Load feature, delivering 12kVA–24kVA in 4U with scalability up to 756kVA+ with Cabinet system. Designed to emulate global grid conditions for compliance and validation testing global regulatory compliance standards such as IEEE 1547, UL 1741, IEC 61000-4-xx, IEC 61000-4, and more.
With optional AC/DC e-load capability, the RGS Series can simulate inductive, capacitive, and resistive load profiles for simulating complex Real world load conditions
Power:
Up to 756kVA+
Voltage:
350Vac L-N/606Vac
L-L or ±500Vdc
Frequency:
15Hz-200Hz
Why Choose RGS Series
High Power Density
24kVA/kW in 4U size, compact design. Scalable upto 1.296kVA/kW
High Performance
Fast transient capabilities at 200µsec time resolution
Extra Current
Industries highest 48Arms/ph continuous current, 37% more current over competitors
Ultra Flexible Configuration
Each phase operate independently source or load, AC/DC
Key Features
- Single, Split, Three-Phase
- Modular, scalable power 12kVA up to 24kVAin 4U
- Up to 216kVA in a single 19″ cabinet
- Three-Phase High Power Systems up to 1.296MVA+.
- Constant Power Voltage Range: 0-350Vac L-N/606Vac L-L and ±500Vdc
- 15Hz-200Hz; Oprional 15-1,200Hz
- AC/DC Voltage Source & Current Source mode

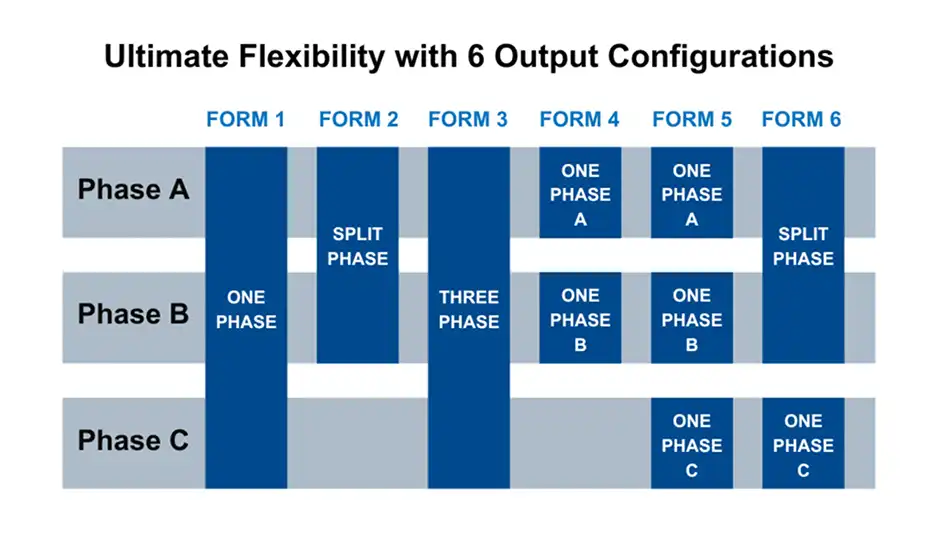

- AC, DC output capability; Flexible 6 Form Configuration
- Regenerative Power Over 90%
- Full Galvanic Isolation protects users and units under test
- Precision True-RMS metering
- Advanced waveform capture & scope function
- Programmable Output Impedance Real-Time & RMS modes (R+L); Resistive -10 to +10Ohm, Inductive 0 to 2 mH
- Sine, Square, Triangle and Arbitrary waveforms
- 3 Phase AC input with Active PFC
- 200 programs for transient testing (List, Pulse, Step Modes)
- Harmonic measurement for voltage and current on all phases
- 380V-480V 3 Phase AC input with Active PFC
- Precision Voltage Programming – 0.02% with Continuous Self Calibration (CSC)
- Load Mode Option: Constant Current (CC), Constant Resistive (CR), Constant Power (CP)
- RS-232, USB, Modbus, LAN, GPIB, SCPI, CAN compatibility; IVI Instrument Drivers
- Extensive Analog and Digital I/O for system integration
- CE (EMC/Safety) Marked
- Built-In SmartSource Suite Remote Control Platfor
Seamless Grid Simulation

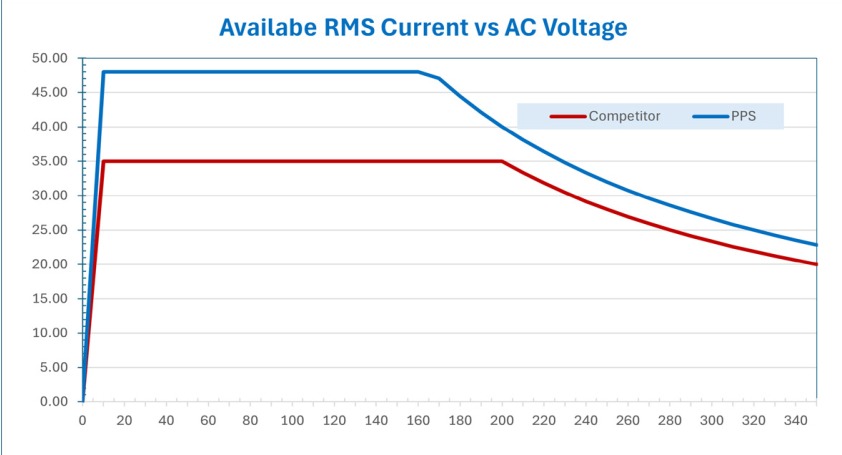

Grid Simulator With Constant Power Over Broad Voltage Range
Benefits:
- 48A RMS current rating at lower voltage
- Reduces capital investment
- Test Constant Power AC input products down to lowest rated input voltage
Accurately Emulate Grid Conditions and Verify Compliance
The increasing development of grid-connected devices like Solar Inverter, EV charger with V2G capabilities require accurate compliance testing to meet regulatory standards such as IEEE 1547 and UL 1741. The Grid emulation demands for simulating LVRT, HVRT, Voltage dip immunity, voltage sags, Harmonics, Interharmonics, flicker events, anti-islanding conditions, and other real-world grid phenomena to support advanced testing requirements. RGS series along with Pre-written Test standard sequence options allows user to perform these test accurately as per standard.

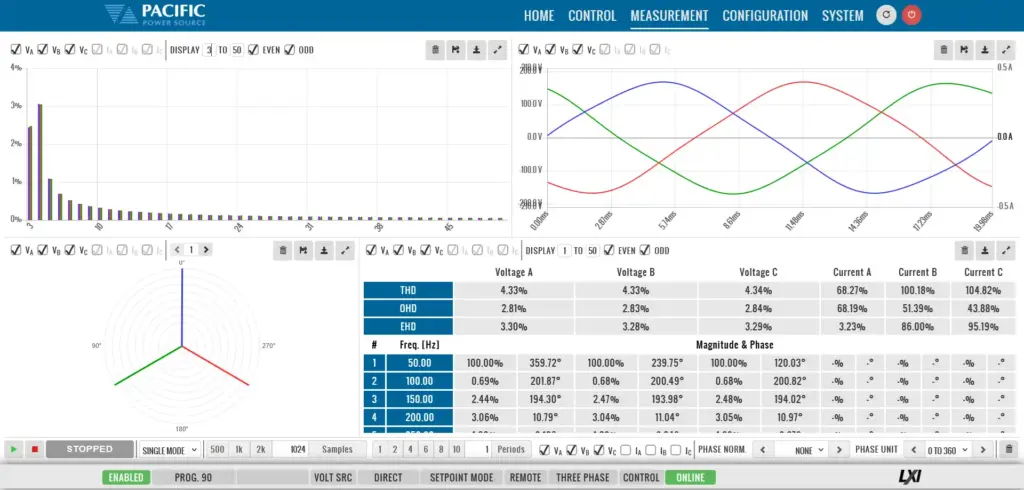

Simulate Harmonics AND Interharmonics
The RGS Regenerative Grid Simulator built-in digitizer and scope with 200 µs resolution. Supports LIST, PULSE, STEP, and generates Sine, Square, Triangle, Clipped, Harmonics, and Inter-harmonics.
- AC, DC configurations
- Simultaneously test AC and DC, Source or Load on separate phases
- Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.
Test AC or DC, as a Source or Load - Independently or Simultaneously
Simultaneous AC and DC operation of modes per phase(or channel), and the automatic switching of output modes provides test engineers with a unique capability and the highest degree of flexibility.
- AC, DC (AC+DC option) configurations in single, split, three phase and multi-channels
- Simultaneously test AC and DC, Source or Load on separate phases
- Full galvanic isolation from facility AC input to output and between output phases/channels also protects the user and the UUT.
Simplify Testing with Smart Control, Built-In
Get access to SmartSource Suite, our proprietary built-in platform that allows full remote control, development, and execution of test sequences in real-time. Intelligently monitor, control, and manage testing using the intuitive embedded web browser interface on any mobile device.
- Access on any web browser in real-time
- Enhanced visualization and reporting tools
- View and control on multiple windows
- Save time and increase productivity
Low Leakage Optimization Option (M26007)
- Reduced AC input common-mode capacitance minimizes leakage current to earth
Prevents nuisance tripping of RCD*/GFCI protection devices. - Maintains full voltage and current source operation
Simplifies integration into protected laboratory and production environments - Ideal for installations with sensitive protection devices or strict leakage current requirements
- M26002 combines both reduced output capacitance AND low leakage (M25057 and M26007 RCD* (Residual-Current Device): Residual-current circuit breaker or ground fault circuit interrupter)
Bench or Rack Mount Models
| Model | Rated Power (VA) | Output Form | Voltage Ranges (VAC/VDC¹) |
Current² (AAc/ADC²) |
Input Power Form (3) | Rack Height | CTA |
|---|---|---|---|---|---|---|---|
| 3120RGS | 12000 | 1,2,3 Ø | 350 (L-N) 500 |
34.0 / 21.0 | 3Ø | 4U | Buy / Rent |
| 3150RGS | 15000 | 1,2,3 Ø | 350 (L-N) 500 |
48.0 / 21.0 | 3Ø | 4U | Buy / Rent |
| 3180RGS | 18000 | 1,2,3 Ø | 350 (L-N) 500 |
48.0 / 21.0 | 3Ø | 4U | Buy / Rent |
| 3210RGS | 21000 | 1,2,3 Ø | 350 (L-N) 500 |
48.0 / 21.0 | 3Ø | 4U | Buy / Rent |
| 3240RGS | 24000 | 1,2,3 Ø | 350 (L-N) 500 |
48.0 / 21.0 | 3Ø | 4U | Buy / Rent |
Parallel Systems
| Model | Rated Power (VA) | Output Form | Voltage Ranges (VAC/VDC¹) | Current² (AAc/ADC²) | Input Power Form (3) | Rack Height | CTA |
|---|---|---|---|---|---|---|---|
| 3240RGS-4 | 24000 | 2,3 Ø | 350 (L-N) 500 |
68.0 / 42.0 | 3Ø | 15U | Buy / Rent |
| 3300RGS-4 | 30000 | 2,3 Ø | 350 (L-N) 500 |
84.0 / 42.0 | 3Ø | 15U | Buy / Rent |
| 3360RGS-4 | 36000 | 2,3 Ø | 350 (L-N) 500 |
84.0 / 42.0 | 3Ø | 15U | Buy / Rent |
| 3420RGS-4 | 42000 | 2,3 Ø | 350 (L-N) 500 |
84.0 / 42.0 | 3Ø | 15U | Buy / Rent |
| 3630RGS-4 | 63000 | 2,3 Ø | 350 (L-N) 500 |
126.0 / 63.0 | 3Ø | 15U | Buy / Rent |
| 3840RGS-4 | 84000 | 2,3 Ø | 350 (L-N) 500 |
168.0 / 84.0 | 3Ø | 28U | Buy / Rent |
| 31050RGS-4 | 105000 | 2,3 Ø | 350 (L-N) 500 |
210.0 / 105.0 | 3Ø | 28U | Buy / Rent |
| 31260RGS-4 | 126000 | 2,3 Ø | 350 (L-N) 500 |
252.0 / 126.0 | 3Ø | 28U | Buy / Rent |
| 31470RGS-4 | 147000 | 2,3 Ø | 350 (L-N) 500 |
294.0 / 147.0 | 3Ø | 40U | Buy / Rent |
| 31680RGS-4 | 168000 | 2,3 Ø | 350 (L-N) 500 |
336.0 / 168.0 | 3Ø | 40U | Buy / Rent |
Notes
- For higher power levels up to 1.296MVA, contact Factory for more details.
- All RGS models have a single voltage range with constant power profile. This eliminates the need for switching between a high and a low voltage range. If desired, a low voltage range can be simulated.
- Maximum current ratings shown are available up to maximum power point. Voltage and Current follow constant power profile so higher current at lower voltage and lower current at higher voltage is available.
- Three phase input: 380 ~ 480 VAC ± 10% input range. All models have active power factor corrected AC inputs. Models above 12kVA require 380~480Vac Input service to deliver full power. 208-240Vac models are not available at this time.
- 19 Inch Cabinet not included with parallel system kits. Contact us for integrated cabinet systems.
- Lower power RGS models can be upgraded to higher power levels using our POWER FLEX upgrade program.
- Contact customer service for details.
FAQ
The RGS Series is a regenerative grid simulator designed to emulate real‑world electrical grid conditions for testing grid‑connected devices such as inverters, EV chargers, and energy storage systems.
The RGS Series is used to:
- Validate grid‑connected devices
- Simulate stable and unstable grid conditions
- Test bidirectional energy flow
- Perform R&D, validation, and production testing
Common industries include:
- EV and EVSE
- Renewable energy (solar & wind inverters)
- Energy storage systems (ESS)
- Microgrids
- Power electronics and smart grid R&D
The RGS Series can simulate:
- Voltage variations
- Frequency changes
- Phase angle shifts
- Grid disturbances and events
- Stable and weak grid conditions
This enables realistic testing without relying on the actual utility grid.
