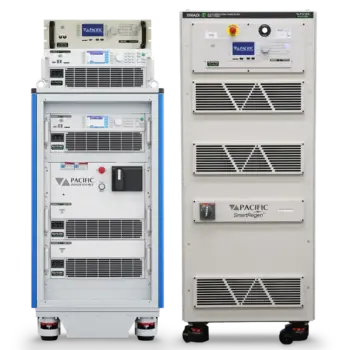

Caltest India is the exclusive authorized partner for Pacific Power Source in India, delivering a comprehensive range of high-performance programmable AC power supplies & sources. Supporting a wide range of testing applications from laboratory evaluation to advanced grid simulation, our portfolio features industry-leading Pacific Power programmable power supplies, Pacific Power precision current sources, and Pacific regenerative grid simulators. Featuring advanced AC, DC, and AC+DC output modes, high-frequency performance, and extensive transient capabilities, backed by localized application and experts support.
Our regenerative product range includes the AGX Series up to 1.29+MVA and the AZX Series up to 1.1MVA. Non-regenerative solutions are available in the AFX and LSX Series.
Compact 4U system delivering up to 24kVA with AC, DC, and AC+DC operation. Combines an AC voltage source, DC power supply, current source, and AC/DC electronic load in a single platform.
Power: 6kVA to 24VA, up to 1.29MVA
Form: 1, 2, and 3 phase
Voltage: 350Vac L-N/606Vac L-L or ± 500Vdc
Frequency: Up to 1,200Hz; Extended up to 3,000Hz

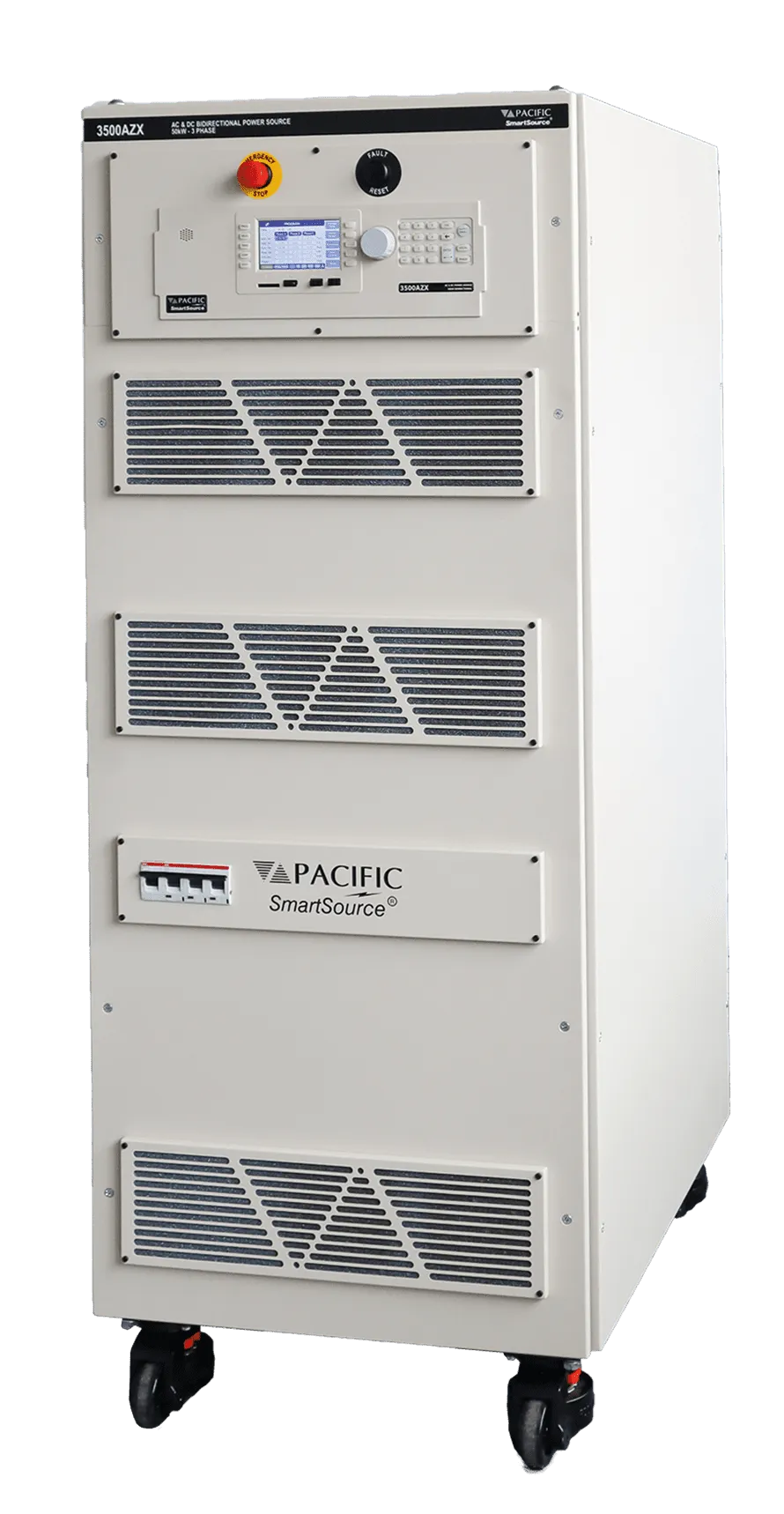

All-in-1 regenerative 4-quadrant AC and DC power Supply. Functions as an AC voltage source, DC power Supply, current source, AC/DC load, and PHIL interface.
Power: 30kVA to 1.1MVA
Form: 1, 2, and 3 phase
Voltage: 0-240Vac L-N / 0-480Vac L-N & ± 500Vdc
Frequency: 15Hz-1000Hz; Extended up to 10,000Hz

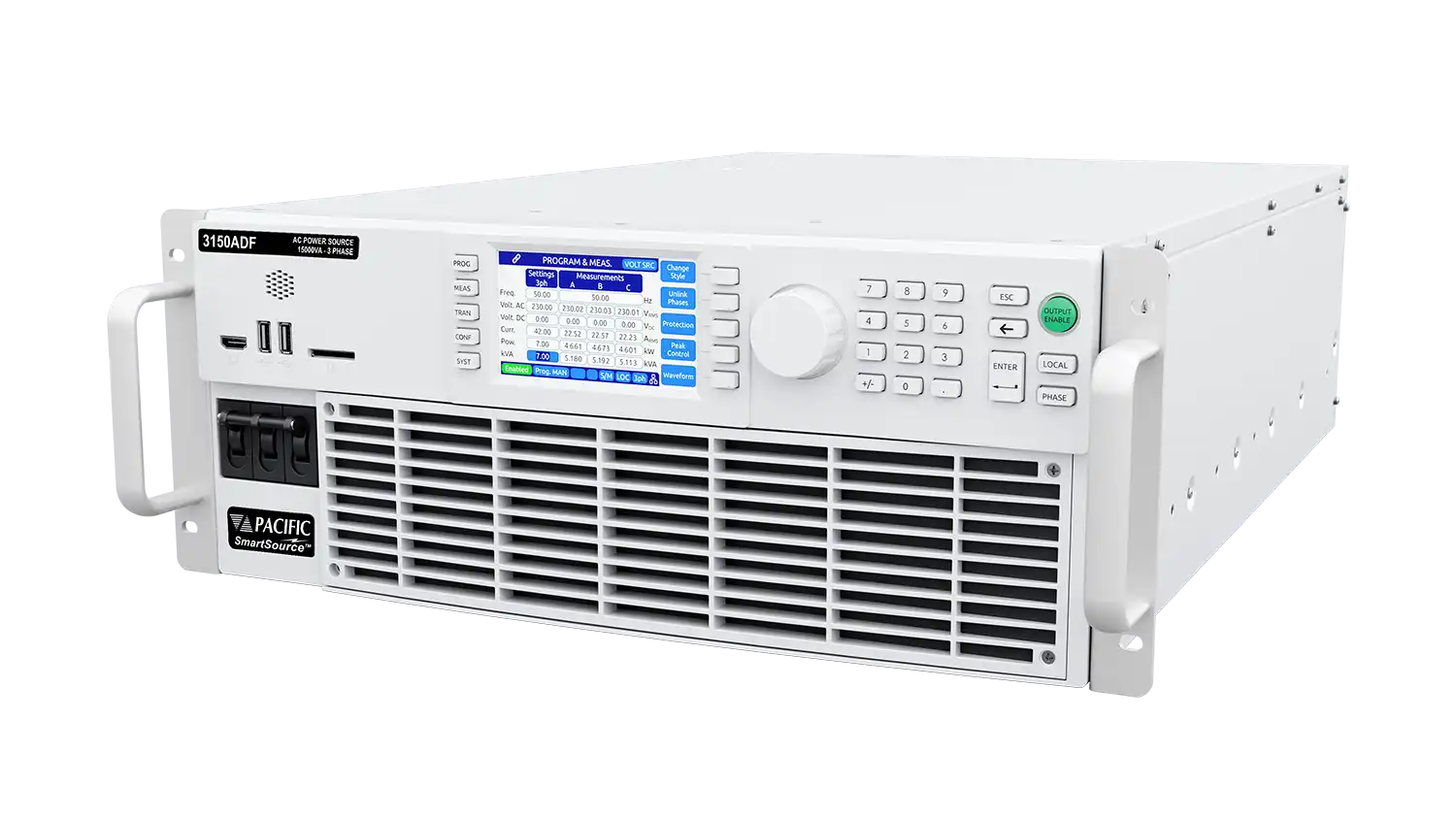

Programmable AC power supply with advanced transient generation from 4.5kVA up to 15kVA in 4U. 180kVA three-phase configurations.
Power: 4.5kVA to 15kVA, Up to 180kVA
Form: 1, 2, and 3 phase
Voltage: 0-333Vac L-N/0-576Vac L-L or ± 425Vdc
Frequency: 15Hz-1200Hz; Extended Range 1-3000Hz
High-power-density regenerative grid simulator with optional 2-in-1 load functionality. Delivers up to 24kVA in a 4U chassis and scales to 1.29MVA, with efficiency exceeding 90%.
Power: 12kVA to 24kVA, Up to 1.29MVA
Form: 1, 2, and 3 phase
Voltage: 350Vac L-N/606 Vac L-L or ±500Vdc
Frequency: 15Hz-200Hz; Option 15Hz-1,200Hz
All-in-1 regenerative 4-quadrant AC and DC power source. Functions as an AC voltage source, DC power supply, current source, AC/DC load, and PHIL Interface.
Power: 30kVA to 1.1MVA
Form: 1, 2, and 3 phase
Voltage: 0-240Vac L-N / 0-480Vac L-N & ± 500Vdc
Frequency: 15Hz-1000Hz; Extended up to 10,000Hz
Reliable and cost-effective programmable AC power Supply available in single- or three-phase configurations. Delivers up to 15kVA in 4U and scales up to 180kVA
Power: 15kVA to 180kVA
Form: 1 or 3 phase
Voltage: 0-300Vac L-N/0-520Vac L-L
Frequency: 45Hz-500Hz; Option F: 15Hz-1200Hz

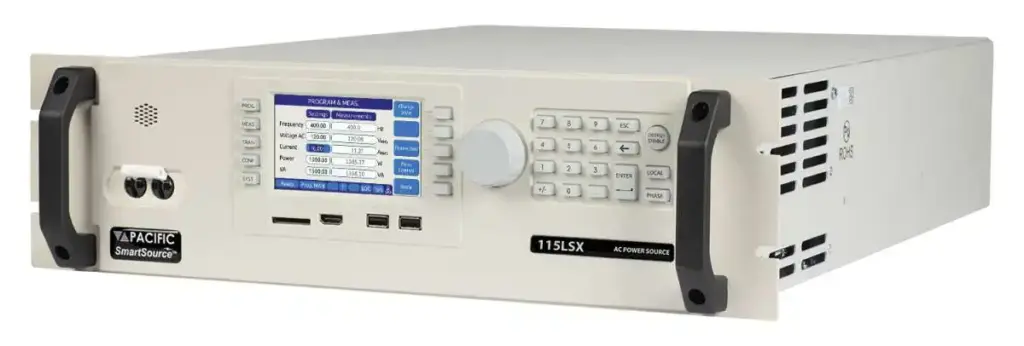

Single or Three-Phase AC Power Supply provides 1.5 – 6kVA/KW for reliable, cost-effective frequency conversion and compliance testing across aerospace, ATE, appliance, and UPS applications.
Power: 1.5KVA to 6kVA
Form: 1 or 3 phase
Voltage: 0 – 135Vac L-N (Transformer
Options to 2.5x)
Frequency: 15Hz-1200Hz
Linear AC Power Supply that delivers low-distortion, high-fidelity waveforms from 500VA to 30KVA, with 15-5,000Hz bandwidth and up to 600Vrms in 1- or 3-phase models.
Power: 500VA to 30KVA
Form: 1 or 3 phase
Voltage: Up to 0-300Vac Direct Coupled Out
Frequency: 15Hz -5000Hz full power
bandwidth
| Model | Rated Power | Output | Voltage | Current | Input / Rack | CTA |
|---|---|---|---|---|---|---|
| 360AGX | 6,000 VA | 1,2,3 Ø | 350 (L-N) / 500 | 17 / 17 | 3Ø / 4U | |
| 390AGX | 9,000 VA | 1,2,3 Ø | 350 (L-N) / 500 | 25 / 21 | 3Ø / 4U | |
| 3120AGX | 12,000 VA | 1,2,3 Ø | 350 (L-N) / 500 | 34 / 21 | 3Ø / 4U | |
| 3150AGX | 15,000 VA | 1,2,3 Ø | 350 (L-N) / 500 | 42 / 21 | 3Ø / 4U | |
| 3180AGX | 18,000 VA | 1,2,3 Ø | 350 (L-N) / 500 | 42 / 21 | 3Ø / 4U | |
| 3210AGX | 21,000 VA | 1,2,3 Ø | 350 (L-N) / 500 | 42 / 21 | 3Ø / 4U | |
| 3240AGX-KIT | 24,000 VA | 2,3 Ø | 350 (L-N) / 480 | 68 / 42 | 3Ø / 8U | |
| 3300AGX-KIT | 30,000 VA | 2,3 Ø | 350 (L-N) / 480 | 84 / 42 | 3Ø / 8U | |
| 3360AGX-KIT | 36,000 VA | 2,3 Ø | 350 (L-N) / 480 | 84 / 42 | 3Ø / 8U | |
| 3420AGX-KIT | 42,000 VA | 2,3 Ø | 350 (L-N) / 480 | 84 / 42 | 3Ø / 8U | |
| 3630AGX-KIT | 63,000 VA | 2,3 Ø | 350 (L-N) / 480 | 126 / 63 | 3Ø / 12U | |
| 3840AGX-KIT | 84,000 VA | 2,3 Ø | 350 (L-N) / 480 | 168 / 84 | 3Ø / 16U | |
| 31050AGX-KIT | 105,000 VA | 2,3 Ø | 350 (L-N) / 480 | 210 / 105 | 3Ø / 20U |
An AC power supply is used to simulate utility grid conditions for testing electrical and electronic equipment, including inverters, motors, EV chargers, and power systems in R&D, manufacturing, and compliance testing environments.
Regenerative AC power supply return energy back to the grid, improving efficiency and reducing operating costs, while non-regenerative systems dissipate energy as heat.
Yes, advanced AC power supply can simulate voltage variations, frequency changes, harmonics, and grid disturbances to replicate real-world operating conditions.
AC power supply are widely used in automotive EV testing, aerospace, renewable energy, industrial electronics, and power conversion systems across India.
Key factors include power rating, voltage range, phase configuration, regenerative capability, waveform programmability, and application-specific testing requirements.
