EA-PUB/PUL/PU Series

Modular DC High Power Supply, 30kW, 60kW in single unit, Scalable up to 3.84MW

Buy / Rent
Datasheet

Delivering up to 300kW per rack, the EA-10000 Industrial Series provides a powerful and efficient DC power testing solution by combining bidirectional, regenerative, and conventional DC power units within a single platform. With energy recovery exceeding 96%, the system helps reduce operating costs while enabling seamless integration of multiple units through a unified firmware architecture.

Designed for high-power and regenerative testing applications, the EA-PUB Series returns absorbed energy back to the grid with more than 96% efficiency, making large-scale battery emulation and battery testing both cost-effective and energy-efficient.

The series includes three power unit types: PUB for bidirectional operation, PUL for regenerative load functionality, and PU as a conventional programmable DC power supply

Why Choose EA-PUB/PUL/PU

Industrial, Higher Power

PUB bidirectional power supply ideal for Battery Emulation for EV, powertrain, ESS, energy applications

High Power Density

Modular scalability in fewer devices 4U or 6U scaled up to 3.84MW. Get up to 300kW in 42U

Regenerative Power

The PUB and PUL can recover up to 96% of absorbed energy saving costs and energy

arrow_all_fill [#ffffff]Created with Sketch.

True Autoranging

Get maximum power across a wide range of voltages and currents, enhancing flexibility in testing applications

Key Features

  • 6U Power with up to 60kW in 21 models
  • 4U Power with up to 30kW in 29 models
  • Systems scalable to higher power up to 3.84MW
  • Voltage Range: Varies by model; typically up to 2000V
  • Current Range: Varies by model; typically up to 1000A
  • Regenerative Operation: Two-quadrant operation with energy recovery efficiency over 96%
  • Industrial Series comes in Programmable bidirectional DC power supplies (PUB), and Regenerative electronic loads (PUL), Programmable DC power supplies (PU)
  • Powerful rack performance & efficiency
  • Fewer units for a high-power system
  • Cooling Options: Air-cooled and water-cooled models available.
  • Interface Options: Profinet, Modbus, Ethernet, with optional water cooling.
  • Form Factor: 19″ slide-in housing, suitable for rackmount integration.
  • DC input / output with autoranging
  • Digital (FPGA) controlled DC input / output U – I – P – R
  • Master-Auxiliary-Bus and Share-Bus
  • To make a multi-device system behave like a single device
  • Emergency stop (machine standards EN60204-1)
  • AC mains input with extended range (380V – 480V, 3ph AC)
  • Built-in interfaces: Ethernet, USB, Analog

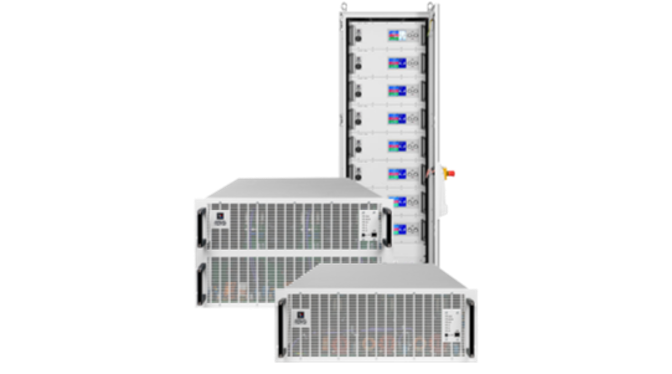

Modular, High Power in Fewer Units

Bidirectional DC Power Supply Ideal for Battery Emulation

The EA-PUB Series bidirectional DC power supplies enable realistic battery emulation through programmable voltage, current, and resistance control. This supports advanced testing of EV systems, energy storage solutions, power electronics, and other DC-powered devices without requiring physical batteries, while regenerative operation improves overall energy efficiency.

• Programmable battery emulation

• Voltage, current, and resistance control

• EV and energy storage testing support

• Regenerative operation for improved efficiency

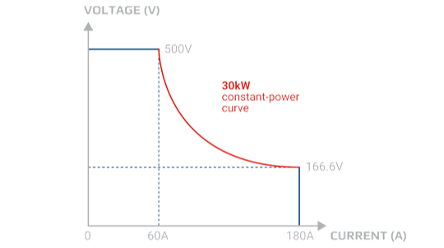

Autoranging for Seamless Power

The EA-PUB / PUL / PU Series incorporates true autoranging technology, enabling maximum output power across a wide range of voltage and current combinations. Unlike conventional power supplies that achieve full power only at rated voltage and current, autoranging ensures efficient utilization of available power throughout the operating range.

• Full power across a wider operating envelope

• Increased flexibility for test engineers

• Efficient utilization of installed power

• Reduced need for multiple dedicated systems

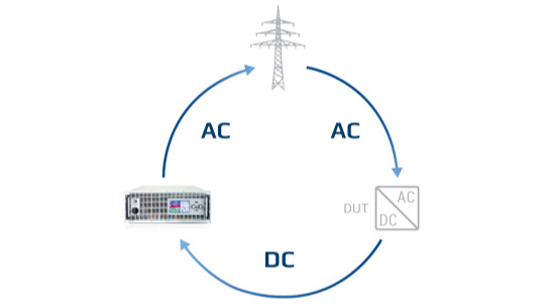

Regenerative Battery Testing for Energy Savings

The PUL and PUB models utilize regenerative technology that recovers up to 96% of absorbed energy during testing. Instead of dissipating energy as heat, recovered power is returned to the local facility grid or public utility network, reducing energy costs and improving overall test efficiency.

• Up to 96% energy recovery

• Reduced cooling requirements

• Lower operating costs

• Improved sustainability and efficiency

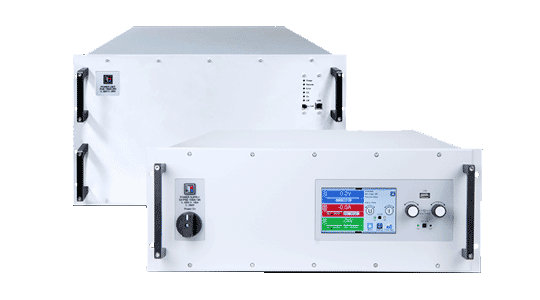

Optional Water Cooling (4U & 6U)

Water-cooled configurations are available for demanding industrial environments. These models efficiently dissipate heat, reduce acoustic noise levels, and help maintain long-term reliability under continuous high-power operation.

• Enhanced thermal management

• Reduced operating noise

• Increased reliability in harsh environments

• Optimized for continuous industrial testing

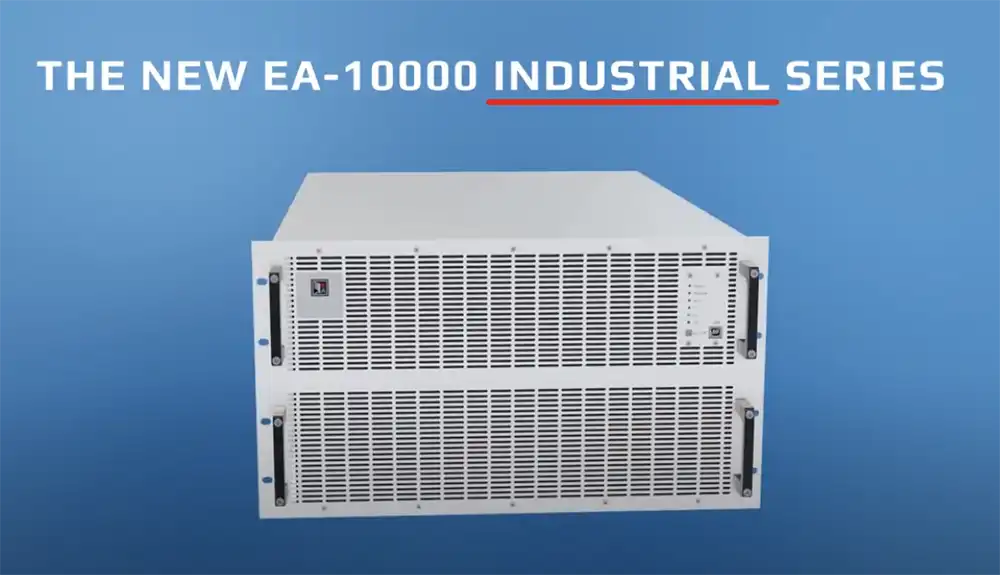

Featured Video

EA-PUB Industrial Bidirectional DC Power Product Intro Video

Watch Now

EA-PU 10000 6U

Model Power Voltage Current Range CTA
EA PU 10360 480 6U 0–60 kW 0–360 V 0–480 A Buy / Rent
EA PU 10500 360 6U 0–60 kW 0–500 V 0–360 A Buy / Rent
EA PU 10750 240 6U 0–60 kW 0–750 V 0–240 A Buy / Rent
EA PU 10920 250 6U 0–60 kW 0–920 V 0–250 A Buy / Rent
EA PU 11000 160 6U 0–60 kW 0–1000 V 0–160 A Buy / Rent
EA PU 11500 120 6U 0–60 kW 0–1500 V 0–120 A Buy / Rent
EA PU 12000 80 6U 0–60 kW 0–2000 V 0–80 A Buy / Rent

EA-PU 10000 4U

Model Power Voltage Current Range CTA
EA PU 10060 1000 4U 0–30 kW 0–60 V 0–1000 A Buy / Rent
EA PU 10080 1000 4U 0–30 kW 0–80 V 0–1000 A Buy / Rent
EA PU 10200 420 4U 0–30 kW 0–200 V 0–420 A Buy / Rent
EA PU 10360 240 4U 0–30 kW 0–360 V 0–240 A Buy / Rent
EA PU 10500 180 4U 0–30 kW 0–500 V 0–180 A Buy / Rent
EA PU 10750 120 4U 0–30 kW 0–750 V 0–120 A Buy / Rent
EA PU 10920 125 4U 0–30 kW 0–920 V 0–125 A Buy / Rent
EA PU 11000 80 4U 0–30 kW 0–1000 V 0–80 A Buy / Rent
EA PU 11500 60 4U 0–30 kW 0–1500 V 0–60 A Buy / Rent
EA PU 12000 40 4U 0–30 kW 0–2000 V 0–40 A Buy / Rent

EA-PUB 10000 6U

Model Power Voltage Current Range CTA
EA PUB 10360 480 6U 0–60 kW 0–360 V 0–480 A Buy / Rent
EA PUB 10500 360 6U 0–60 kW 0–500 V 0–360 A Buy / Rent
EA PUB 10750 240 6U 0–60 kW 0–750 V 0–240 A Buy / Rent
EA PUB 10920 250 6U 0–60 kW 0–920 V 0–250 A Buy / Rent
EA PUB 11000 160 6U 0–60 kW 0–1000 V 0–160 A Buy / Rent
EA PUB 11500 120 6U 0–60 kW 0–1500 V 0–120 A Buy / Rent
EA PUB 12000 80 6U 0–60 kW 0–2000 V 0–80 A Buy / Rent

EA-PUB 10000 4U

Model Power Voltage Current Range CTA
EA PUB 10060 1000 4U 0–30 kW 0–60 V 0–1000 A Buy / Rent
EA PUB 10080 1000 4U 0–30 kW 0–80 V 0–1000 A Buy / Rent
EA PUB 10200 420 4U 0–30 kW 0–200 V 0–420 A Buy / Rent
EA PUB 10360 240 4U 0–30 kW 0–360 V 0–240 A Buy / Rent
EA PUB 10500 180 4U 0–30 kW 0–500 V 0–180 A Buy / Rent
EA PUB 10750 120 4U 0–30 kW 0–750 V 0–120 A Buy / Rent
EA PUB 10920 125 4U 0–30 kW 0–920 V 0–125 A Buy / Rent
EA PUB 11000 80 4U 0–30 kW 0–1000 V 0–80 A Buy / Rent
EA PUB 11500 60 4U 0–30 kW 0–1500 V 0–60 A Buy / Rent

EA-PUL 10000 6U

Model Power Voltage Current Range CTA
EA PUL 10360 480 6U 0–60 kW 0–360 V 0–480 A Buy / Rent
EA PUL 10500 360 6U 0–60 kW 0–500 V 0–360 A Buy / Rent
EA PUL 10750 240 6U 0–60 kW 0–750 V 0–240 A Buy / Rent
EA PUL 10920 250 6U 0–60 kW 0–920 V 0–250 A Buy / Rent
EA PUL 11000 160 6U 0–60 kW 0–1000 V 0–160 A Buy / Rent
EA PUL 11500 120 6U 0–60 kW 0–1500 V 0–120 A Buy / Rent
EA PUL 12000 80 6U 0–60 kW 0–2000 V 0–80 A Buy / Rent

EA-PUL 10000 4U

Model Power Voltage Current Range CTA
EA PUL 10060 1000 4U 0–30 kW 0–60 V 0–1000 A Buy / Rent
EA PUL 10080 1000 4U 0–30 kW 0–80 V 0–1000 A
EA PUL 10200 420 4U 0–30 kW 0–200 V 0–420 A Buy / Rent
EA PUL 10360 240 4U 0–30 kW 0–360 V 0–240 A Buy / Rent
EA PUL 10500 180 4U 0–30 kW 0–500 V 0–180 A Buy / Rent
EA PUL 10750 120 4U 0–30 kW 0–750 V 0–120 A Buy / Rent
EA PUL 10920 125 4U 0–30 kW 0–920 V 0–125 A Buy / Rent
EA PUL 11000 80 4U 0–30 kW 0–1000 V 0–80 A Buy / Rent
EA PUL 11500 60 4U 0–30 kW 0–1500 V 0–60 A Buy / Rent
EA PUL 12000 40 4U 0–30 kW 0–2000 V 0–40 A Buy / Rent
Title
Document Type
EA-PUB 10000 4U 30KW Programmable Bidirectional DC Power Supply
Datasheet
EA-PUB 10000 6U – Programmable Bidirectional DC Power Supply
Datasheet

FAQ

The EA PUB Series is a industrial bidirectional programmable DC power supply that can both source power to a device and absorb power from it, enabling efficient two‑way energy flow for advanced DC testing. PSB Series power starts from 30kW to 60kW in single unit.

Yes. In sink mode, the EA PUB Series acts as a programmable electronic load, eliminating the need for a separate load instrument in many test setups.

Yes. The EA PUB Series is designed to support smooth and fast transitions between sourcing and sinking, enabling realistic simulation of real‑world operating conditions.
