Up to 756kVA+
350Vac L-N/606Vac
L-L or ±500Vdc
Up to 1,200Hz
300/600kW in single cabinet
Voltage: 5-750V per channel, 10-1500V channels in series Current ±1000A per channel, ±2000A channels in parallel
Switchable battery tester / battery emulator version
High MTBF to meet Reliability and for continuous operation
• Power: 300/600 kW
• Voltages: per channel: 5 – 750 V / channel in series 10 – 1500 V
• Current: per channel: ±1000A / channel in parallel: ±2000A
• Control accuracy 0.1 % of F.S.
• Switchable battery tester / battery emulator version
• Protection class IP54
• Water cooling, Integrated water/water heat exchanger
I-TS Felx power systems deliver up to 600 kW with current ratings up to ±2,000 A, and Voltage range from 5V to 1500V with water cooled.

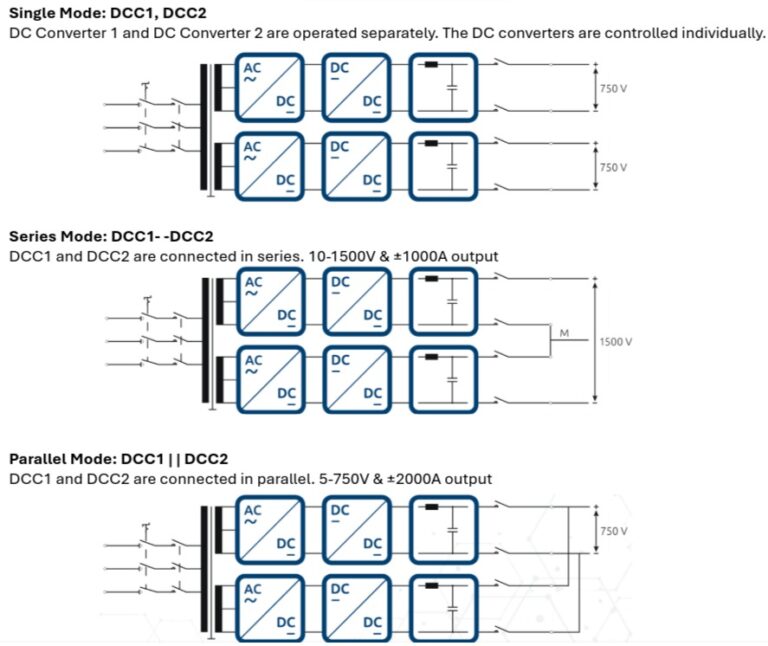

I-TS Flex channel model offers Dual channel. User can configure in Series, parallel or independent channel or 3-level voltage (Centre tap) as per the use case.
| Model | Power | Voltage | Current | Channels | Action |
|---|---|---|---|---|---|
| I-TS-3872-1500 | 300, 600 | 1500 | ± 1000 | 2 | Buy / Rent |

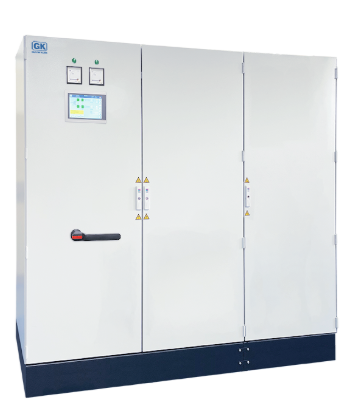

High-performance I-TS (Infeed test system) is a highly dynamic, bidirectional DC power supply with continuous and uninterrupted transition between source and sink operation. Its outstanding performance forms the basis for a wide range of applications in the automotive, hydrogen, and laboratory sectors.
High-performance I-TS (Infeed test system) is a highly dynamic, bidirectional DC power supply with continuous and uninterrupted transition between source and sink operation. Its outstanding performance forms the basis for a wide range of applications in the automotive, hydrogen, and laboratory sectors.
The i‑TS3840 is commonly used by:
No, Overload operation is supported by i-TS3870-ol series with similar capability.
